MavenPublish插件解析

发表于 更新于

使用

添加plugin

1
2
3
plugins {
    id 'maven-publish'
}

添加extension

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
publishing {
    publications {

        maven(MavenPublication) { // MavenPublication
            groupId 'com.miniapp.tools'
            artifactId 'sample'
            version '0.0.1'

            from components.java  //SoftwareComponent 主要作用是pom中写入依赖项目

            pom {
                // MavenPom 手动给pom中添加一些信息(依赖，描述，licenses，组织，开发者，团队，scm等)
            }

            artifact { // 工件
                // 仓库中上传的资源，可以是jar，source等
                // miniapp_apt_debug.zip
                // classifier 'debug'   // 名称后缀
                // extension 'zip'   // 文件类型
            }

            versionMapping {
                // pom 中 替换版本
            }
        }
        // 这种写法很诡异，它其实调用了 <U extends T> U create(String name, Class<U> type);
        // 下面的写法同publishing.publications.create("myMaven",MavenPlblication.class);
        myMaven(MavenPublication) {
        }
    }

    repositories {
        mavenLocal() // mavenLocal仓库
        maven {      // remote仓库
            name 'remote'
            url mvn_repo
            credentials {
                username = mvn_username
                password = mvn_password
            }
        }
    }

}

原理

初始化

publishing tasks

1
./gradlew :amap_miniapp_compiler:tasks
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
// metadata
generateMetadataFileForMavenPublication - Generates the Gradle metadata file for publication 'maven'.
// 生成pom
generatePomFileForMavenPublication - Generates the Maven POM file for publication 'maven'.
// 发布所有
publish - Publishes all publications produced by this project.
// 发布所有的 Publications
publishAllPublicationsToMavenLocalRepository - Publishes all Maven publications produced by this project to the MavenLocal repository.
// 发布所有的 Publications
publishAllPublicationsToRemoteRepository - Publishes all Maven publications produced by this project to the remote repository.
// 内置mavenlocal
publishMavenPublicationToMavenLocal - Publishes Maven publication 'maven' to the local Maven repository.
// 发布到自定义本地仓库
publishMavenPublicationToMavenLocalRepository - Publishes Maven publication 'maven' to Maven repository 'MavenLocal'.
//发布到自定义的源端仓库
publishMavenPublicationToRemoteRepository - Publishes Maven publication 'maven' to Maven repository 'remote'.
// plugin内置的一个 publish
publishToMavenLocal - Publishes all Maven publications produced by this project to the local Maven cache.

MavenPublishPlugin

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
public class MavenPublishPlugin implements Plugin<Project> {
    @Override
    public void apply(final Project project) {
        //执行 PublishingPlugin apply
        project.getPluginManager().apply(PublishingPlugin.class);

        final TaskContainer tasks = project.getTasks();
        //注册task publishToMavenLocal
        tasks.register(PUBLISH_LOCAL_LIFECYCLE_TASK_NAME, publish -> {
            publish.setDescription("Publishes all Maven publications produced by this project to the local Maven cache.");
            publish.setGroup(PublishingPlugin.PUBLISH_TASK_GROUP);
        });

        project.getExtensions().configure(PublishingExtension.class, extension -> {
            //注册 MavenPublicationFactory，它可以帮我们通过myMaven构建一个 MavenPublication
            extension.getPublications().registerFactory(MavenPublication.class, new MavenPublicationFactory(
                    dependencyMetaDataProvider,
                    instantiatorFactory.decorateLenient(),
                    fileResolver,
                    project.getPluginManager(),
                    project.getExtensions()));
            // 注册task
            realizePublishingTasksLater(project, extension);
        });
    }

    private void realizePublishingTasksLater(final Project project, final PublishingExtension extension) {

        // 获取publications中的列表
        final NamedDomainObjectSet<MavenPublicationInternal> mavenPublications = extension.getPublications().withType(MavenPublicationInternal.class);
        final TaskContainer tasks = project.getTasks();
        final DirectoryProperty buildDirectory = project.getLayout().getBuildDirectory();

        // 通过name 获取 publish 的TaskProvider，这个task在PublishingPlugin进行了注册
        final TaskProvider<Task> publishLifecycleTask = tasks.named(PublishingPlugin.PUBLISH_LIFECYCLE_TASK_NAME);

        // 获取 publishToMavenLocal 上面进行过注册
        final TaskProvider<Task> publishLocalLifecycleTask = tasks.named(PUBLISH_LOCAL_LIFECYCLE_TASK_NAME);

        // 获取 repositories中的列表
        final NamedDomainObjectList<MavenArtifactRepository> repositories = extension.getRepositories().withType(MavenArtifactRepository.class);

        // 注册 publishAllPublicationsToMavenLocalRepository和 publishAllPublicationsToRemoteRepository
        repositories.all(repository -> tasks.register(publishAllToSingleRepoTaskName(repository), publish -> {
            publish.setDescription("Publishes all Maven publications produced by this project to the " + repository.getName() + " repository.");
            publish.setGroup(PublishingPlugin.PUBLISH_TASK_GROUP);
        }));
        //遍历MavenPublication 创建task
        mavenPublications.all(publication -> {

            // generateMetadataFileForMavenPublication
            createGenerateMetadataTask(tasks, publication, mavenPublications, buildDirectory);

            // generatePomFileForMavenPublication
            createGeneratePomTask(tasks, publication, buildDirectory, project);

            // publishMavenPublicationToMavenLocal
            createLocalInstallTask(tasks, publishLocalLifecycleTask, publication);

            // 我们自定义的上传maven task
            createPublishTasksForEachMavenRepo(tasks, publishLifecycleTask, publication, repositories);
        });
    }

    private String publishAllToSingleRepoTaskName(MavenArtifactRepository repository) {
        return "publishAllPublicationsTo" + capitalize(repository.getName()) + "Repository";
    }

}

上面的代码主要是解析 publishing （PublishingExtension），并且根据我们设置的publications和repositories 构建task，构建的task类型，我们在上一部分中已经列出。

开头发现在apply方法中调用了PublishingPlugin的apply方法，我们继续查看PublishingPlugin

PublishingPlugin

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
public class PublishingPlugin implements Plugin<Project> {
    @Override
    public void apply(final Project project) {
        RepositoryHandler repositories = publicationServices.createRepositoryHandler();
        PublicationContainer publications = instantiator.newInstance(DefaultPublicationContainer.class, instantiator, collectionCallbackActionDecorator);

        PublishingExtension extension = project.getExtensions().create(PublishingExtension.class, PublishingExtension.NAME, DefaultPublishingExtension.class, repositories, publications);

        //注册publish task
        project.getTasks().register(PUBLISH_LIFECYCLE_TASK_NAME, task -> {
            task.setDescription("Publishes all publications produced by this project.");
            task.setGroup(PUBLISH_TASK_GROUP);
        });
        extension.getPublications().all(publication -> {
            PublicationInternal<?> internalPublication = Cast.uncheckedNonnullCast(publication);
            ProjectInternal projectInternal = (ProjectInternal) project;
            projectPublicationRegistry.registerPublication(projectInternal, internalPublication);
        });
        bridgeToSoftwareModelIfNeeded((ProjectInternal) project);
        validatePublishingModelWhenComplete(project, extension);
    }
}

初始化完成后，每个task都可以独立执行，这里分析publishMavenPublicationToMavenLocalRepository和publishMavenPublicationToRemoteRepository；构建task过程如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
private void createPublishTasksForEachMavenRepo(final TaskContainer tasks, final TaskProvider<Task> publishLifecycleTask, final MavenPublicationInternal publication, final NamedDomainObjectList<MavenArtifactRepository> repositories) {
        final String publicationName = publication.getName();
        repositories.all(repository -> {
            final String repositoryName = repository.getName();
            final String publishTaskName = "publish" + capitalize(publicationName) + "PublicationTo" + capitalize(repositoryName) + "Repository";
            tasks.register(publishTaskName, PublishToMavenRepository.class, publishTask -> {
                publishTask.setPublication(publication);
                publishTask.setRepository(repository);
                publishTask.setGroup(PublishingPlugin.PUBLISH_TASK_GROUP);
                publishTask.setDescription("Publishes Maven publication '" + publicationName + "' to Maven repository '" + repositoryName + "'.");
            });
            publishLifecycleTask.configure(task -> task.dependsOn(publishTaskName));
            tasks.named(publishAllToSingleRepoTaskName(repository), publish -> publish.dependsOn(publishTaskName));
        });
    }

这里的代码是帮助构建task，并且让publish和publishAllxxxxxx 依赖这个task

Task执行

PublishToMavenRepository (publishMavenPublicationToMavenLocalRepository)

  • 命令
1
./gradlew :amap_miniapp_compiler:publishMavenPublicationToMavenLocalRepository

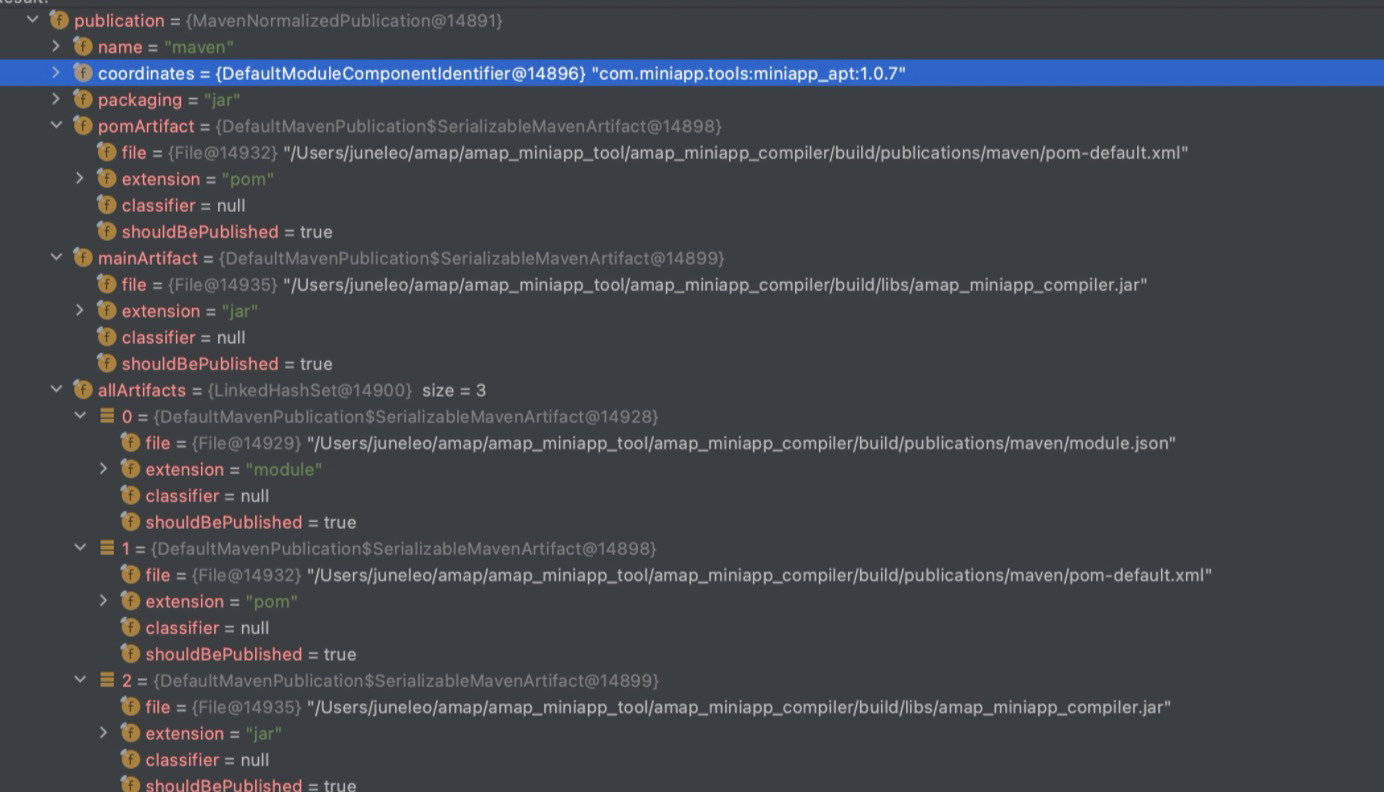

  • publication

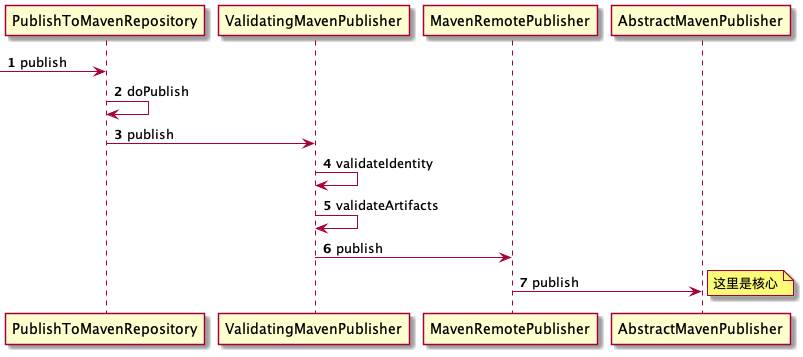

  • 流程图
  • 核心上传代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
abstract class AbstractMavenPublisher implements MavenPublisher {

    protected void publish(MavenNormalizedPublication publication, ExternalResourceRepository repository, URI rootUri, boolean localRepo) {
        String groupId = publication.getGroupId();
        String artifactId = publication.getArtifactId();
        String version = publication.getVersion();

        ModuleArtifactPublisher artifactPublisher = new ModuleArtifactPublisher(repository, localRepo, rootUri, groupId, artifactId, version);
        // snapshot
        if (isSnapshot(version)) {
            ...
        }
        // 上传mainArtifact
        if (publication.getMainArtifact() != null) {
            artifactPublisher.publish(null, publication.getMainArtifact().getExtension(), publication.getMainArtifact().getFile());
        }
        // 上传pom
        artifactPublisher.publish(null, "pom", publication.getPomArtifact().getFile());
        for (MavenArtifact artifact : publication.getAdditionalArtifacts()) {
            //其他额外的 artifact
            artifactPublisher.publish(artifact.getClassifier(), artifact.getExtension(), artifact.getFile());
        }

        ExternalResourceName externalResource = artifactPublisher.getMetadataLocation();
        Metadata metadata = createMetadata(groupId, artifactId, version, repository, externalResource);
        // 上传 metadata
        artifactPublisher.publish(externalResource, writeMetadataToTmpFile(metadata, "module-maven-metadata.xml"));
    }
}
