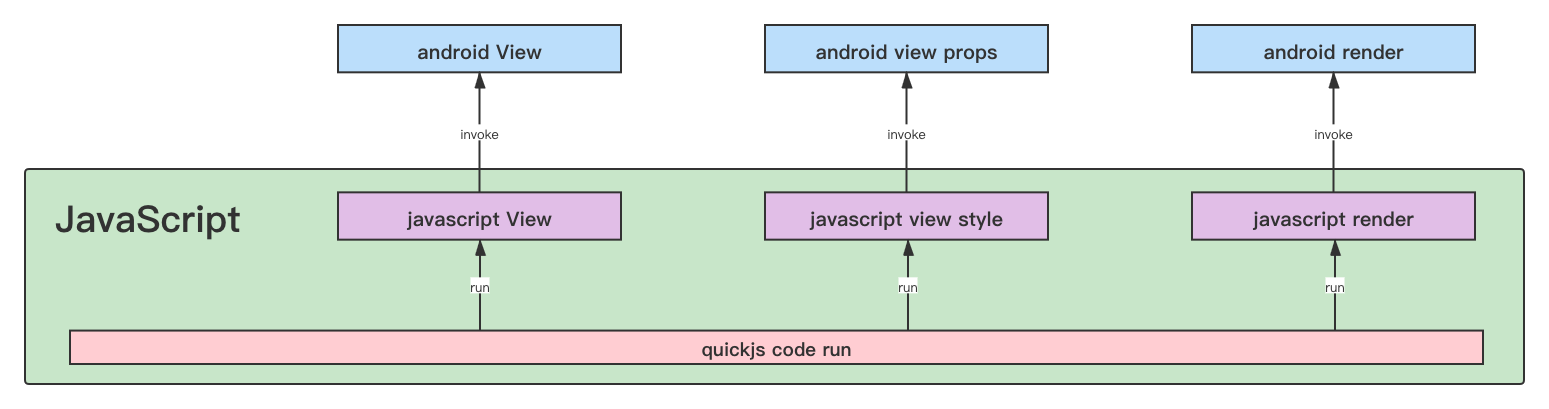

滴滴Hummer原理

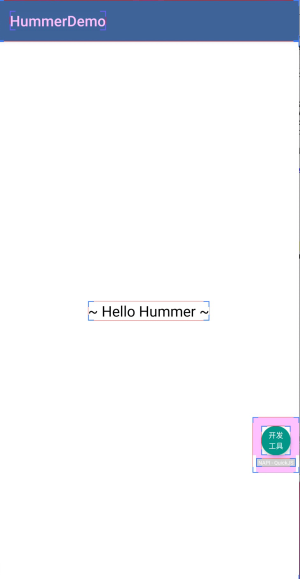

使用（HelloWorld）

class RootView extends View {
    constructor() {
        super();

        this.style = {
            width: '100%',
            height: '100%',
            justifyContent: 'center',
            alignItems: 'center',
            backgroundColor: '#FFFFFF',
        }

        let textView = new Text();
        textView.text = "~ Hello Hummer ~";
        textView.style = {
            fontSize: 20,
            color: '#000000',
        }

        this.appendChild(textView);
    }
}

Hummer.render(new RootView());

Android目录结构

• hermes-debugger hermes引擎调试代码
• hummer 对外报漏的sdk依赖
• hummer-annotation apt 注解
• hummer-compiler apt processor，主要是根据代码生成js，js执行过程中反调用java代码
• hummer-component js 映射的 端侧组件
• hummer-core js引擎
• hummer-demo-app demo
• hummer-dev-tools 调试
• hummer-plugin-interface 调试
• hummer-sdk hummer除core之外的核心代码

JS引擎

• JavaScriptCore
• QuickJS
• hermes facebook提供的js引擎，目前没有了解过
• v8 代码中有提到，但是c代码未集成

编译

tip：COMPILE_JS_ENGINE=NAPI 替换为QuickJS之后，打包成功但无法启动

• 编译会启动一个hummer服务，用于拉取js代码，这里直接使用assets的helloworld.js

• 下载N-Api

  • N-api封装了jsc，qjs，hermes，将c和javascript引擎隔离开来
  • https://github.com/OrangeLab/N-API

• apt

  • compoent ，生成组件的createInstance和invoke，用于js回调创建组件和设置属性
  • register，生成组件组册，和组件的js代码，以及生成用于运行js的代码

compoent

public class Image$$Invoker extends BaseInvoker<Image> {
  @Override
  public String getName() {
    return "Image";
  }

  @Override
  protected Image createInstance(JSValue jsValue, Object[] params) {
    String param0 = params.length > 0 && params[0] != null ? String.valueOf(params[0]) : null;
    return new Image(mHummerContext, jsValue, param0);
  }

  @Override
  protected Object invoke(Image instance, String methodName, Object[] params) {
    Object jsRet = null;
    switch (methodName) {
      case "setSrc": {
        String param0 = params.length > 0 && params[0] != null ? String.valueOf(params[0]) : null;
        instance.setSrc(param0);
      } break;
      case "setGifSrc": {
        String param0 = params.length > 0 && params[0] != null ? String.valueOf(params[0]) : null;
        instance.setGifSrc(param0);
      } break;
      case "setGifRepeatCount": {
        int param0 = params.length > 0 && params[0] != null ? ((Number) params[0]).intValue() : 0;
        instance.setGifRepeatCount(param0);
      } break;
      case "load": {
        Object param0 = params.length > 0 ? ((params[0] instanceof String && (HMGsonUtil.isJsonObject((String) params[0]) || HMGsonUtil.isJsonArray((String) params[0]))) ? HMGsonUtil.fromJson((String) params[0], new TypeToken<Object>(){}.getType()) : (Object) params[0]) : null;
        JSCallback param1 = params.length > 1 && params[1] != null ? (JSCallback) params[1] : null;
        instance.load(param0,param1);
      } break;
    }
    return jsRet;
  }
}

register

public class HummerRegister$$hummer_component {
  public static final String JS_CODE = "var Image = class Image extends Base {\n"
      + "    constructor(...args) {\n"
      + "        super('Image', ...args);\n"
      + "    }\n"
      + "    set src(arg) {\n"
      + "        this._src = arg;\n"
      + "        arg = transSingleArg(arg);\n"
      + "        invoke('Image', this.objID, 'setSrc', arg);\n"
      + "    }\n"
      + "    get src() {\n"
      + "        return this._src;\n"
      + "    }\n"
      + "    set gifSrc(arg) {\n"
      + "        this._gifSrc = arg;\n"
      + "        arg = transSingleArg(arg);\n"
      + "        invoke('Image', this.objID, 'setGifSrc', arg);\n"
      + "    }\n"
      + "    get gifSrc() {\n"
      + "        return this._gifSrc;\n"
      + "    }\n"
      + "    set gifRepeatCount(arg) {\n"
      + "        this._gifRepeatCount = arg;\n"
      + "        arg = transSingleArg(arg);\n"
      + "        invoke('Image', this.objID, 'setGifRepeatCount', arg);\n"
      + "    }\n"
      + "    get gifRepeatCount() {\n"
      + "        return this._gifRepeatCount;\n"
      + "    }\n"
      + "    load(...args) {\n"
      + "        let stash = args;\n"
      + "        args = transArgs(...args);\n"
      + "        invoke('Image', this.objID, 'load', ...args);\n"
      + "    }\n"
      + "}\n"
      + "__GLOBAL__.Image = Image;\n";

  public static void init(HummerContext hummerContext) {
    hummerContext.registerInvoker(new Image$$Invoker());
    hummerContext.evaluateJavaScript(JS_CODE, "hummer_component.js");
  }
}

运行

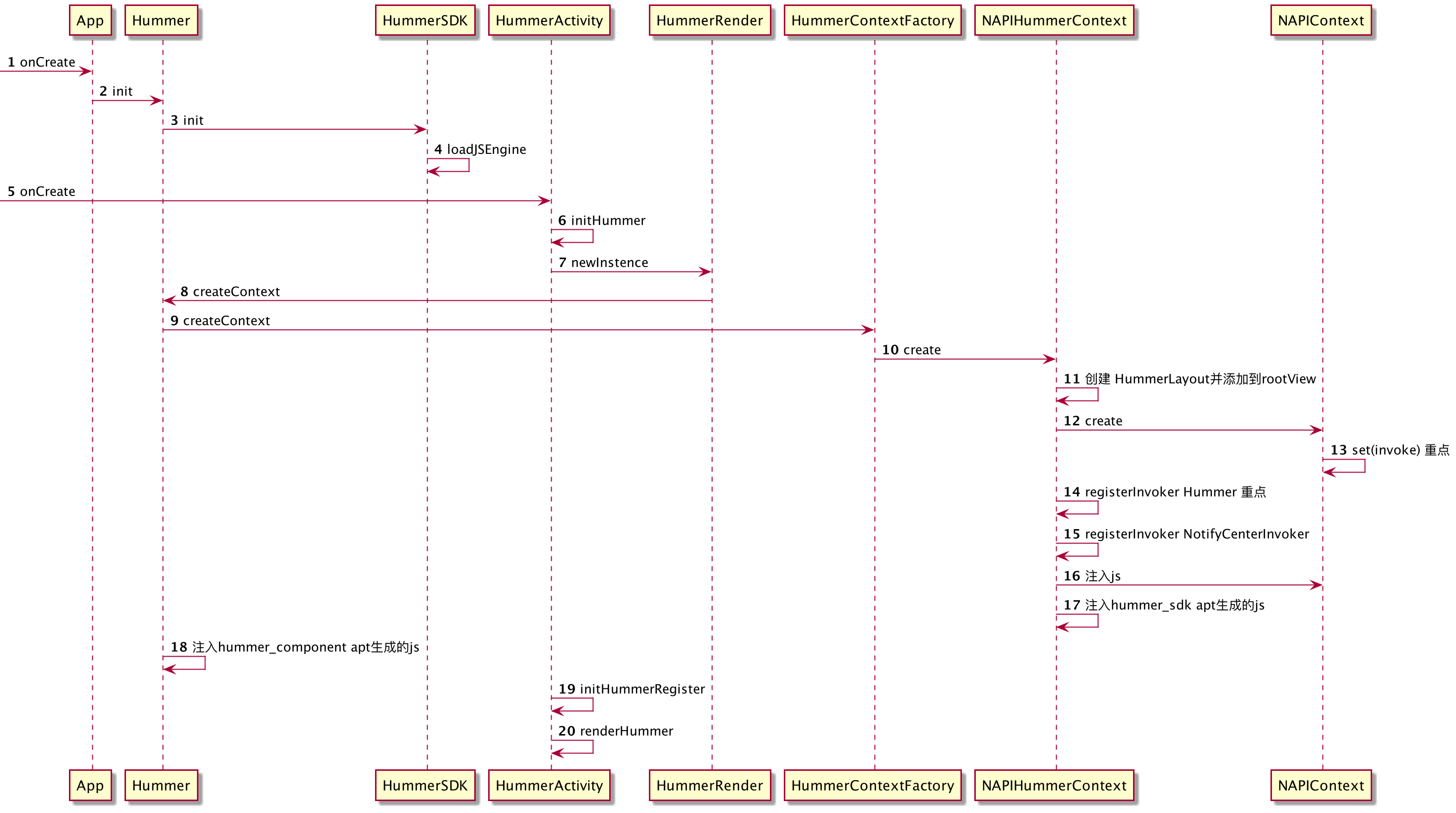

流程图

• NAPIContext 和js交互
• NAPIHummerContext android上下文包装，包含了js操作，容器相关
• HummerRender 用于js的加载

javascript注入

• HummerDefinition.js
• HummerRegister$$hummer_sdk 中js注入
• HummerRegister$$hummer_component 注入
• 自定义属性和方法注入
• 业务js注入

HelloWorld分析

class RootView extends View {
    constructor() {
        super();

        this.style = {
            width: '100%',
            height: '100%',
            justifyContent: 'center',
            alignItems: 'center',
            backgroundColor: '#FFFFFF',
        }

        let textView = new Text();
        textView.text = "~ Hello Hummer ~";
        textView.style = {
            fontSize: 20,
            color: '#000000',
        }

        this.appendChild(textView);
    }
}

Hummer.render(new RootView());

首先是new RootView ，RootView的继承关系为RootView -> View -> Base

View.js (此代码为自动生成)

class View extends Base {
    constructor(...args) {
        super('View', ...args);
    }
    appendChild(...args) {
        let stash = args;
        args = transArgs(...args);
        invoke('View', this.objID, 'appendChild', ...args);
    }

    removeChild(...args) {
        let stash = args;
        args = transArgs(...args);
        invoke('View', this.objID, 'removeChild', ...args);
    }
}

__GLOBAL__.View = View;

Base.js

class Base {
    constructor(className, ...args) {
        this.className = className;
        this.objID = idGenerator();
        this.recycler = new Recycler(this.objID);

        let params = transArgs(...args);
        invoke(this.className, this.objID, "constructor", this, ...params);

        // 已弃用
        this.initialize(...args);

        // 此方法只用于调试，为了统计组件树和函数调用树
        if (__IS_DEBUG__) {
            invoke(this.className, this.objID, "constructor_end", this);
        }
    }
	...
}
__GLOBAL__.Base = Base;

RootView 会调用 Base中的构造方法，className= View，最终调用invoke方法回调端上。

public class View$$Invoker extends BaseInvoker<View> {
  @Override
  public String getName() {
    return "View";
  }

  @Override
  protected View createInstance(JSValue jsValue, Object[] params) {
    String param0 = params.length > 0 && params[0] != null ? String.valueOf(params[0]) : null;
    return new View(mHummerContext, jsValue, param0);
  }
}

invoke方法会回调View$$Invoker的createInstance方法创建一个View，此View为自定义View

@Component("View")
public class View extends HummerLayoutExtendView {

    private static final String OVERFLOW_VISIBLE = "visible";
    private static final String OVERFLOW_HIDDEN = "hidden";

    public View(HummerContext context, JSValue jsValue, String viewID) {
        super(context, jsValue, viewID);
    }
}

RootView中创建的Text原理也类似，最终会调用端上的Text，接下来我们分析Hummer的render方法

HummerDefinition.js

const Hummer = {
    setBasicWidth: (width) => {
        invoke("Hummer", 0, "setBasicWidth", width);
    },
    render: (view) => {
        invoke("Hummer", 0, "render", view.objID);
    },
    loadScript: (script) => {
        return invoke("Hummer", 0, "loadScript", script);
    },
    loadScriptWithUrl: (url, callback) => {
        invoke("Hummer", 0, "loadScriptWithUrl", url, callback);
    },
    postException: (err) => {
        err = transSingleArg(err);
        invoke("Hummer", 0, "postException", err);
    },
    notifyCenter: NotifyCenter,
}
__GLOBAL__.Hummer = Hummer;

hummer也是回调到了端上的render方法，这里直接给出代码

public class HummerInvoker extends BaseInvoker<HMBase> {

    @Override
    public String getName() {
        return "Hummer";
    }

    @Override
    protected HMBase createInstance(JSValue jsValue, Object... params) {
        return null;
    }

    @Override
    protected Object invoke(HMBase instance, String methodName, Object... params) {
        Object jsRet = null;
        switch (methodName) {
            case "setBasicWidth":
                RemUtil.BASE_WIDTH = ((Number) params[0]).floatValue();
                break;
            case "render":
                long objId = ((Number) params[0]).longValue();
                HMBase v = mInstanceManager.get(objId);
                mHummerContext.render(v);
                break;
        }
        return jsRet;
    }
}

mHummerContext为上面提到的NAPIHummerContext

public class HummerContext extends ContextWrapper {
    public void render(HMBase base) {
        if (base != null) {
            mJSRootView = base;
            mJsPage = base.getJSValue();
            mJsPage.protect();
            create();

            if (mContent != null) {
                mContent.removeAllViews();
                mContent.addView(base);
            }

            startIfNeed();
            resumeIfNeed();
        }
    }
}

最终将base也就是上面提到的RootView添加到了端上容器中
