Apt原理

发表于 更新于

AnnotationProcessor（apt） 这个单词组合我们经常在build.gradle 中看到，或许大部分人都知道它是用来做什么的，也有部分人会使用apt通过注解生成代码，但是相信大部分人仅仅只是会用，而没有关注过apt的原理

今天我将从gradle编译流程的角度来给大家分享Apt的原理

SPI使用

讲解apt首先从spi讲起，因为spi也是使用了apt注解生成代码的，如果细心一点你一定会发现它是使用AutoServiceProcessor来寻找@AutoService的，下面看看如何来使用它。

build.gradle

1
implementation 'com.google.auto.service:auto-service:1.0-rc7'

ITest.java

1
2
3
public interface ITest {
    void print();
}

Test.java

1
2
3
4
5
6
7
8
@AutoService(ITest.class)
public class Test implements ITest {

    @Override
    public void print() {
        Log.d("song", "hahaha");
    }
}

调用测试

1
ServiceLoader.load(ITest.class).iterator().next().print();

ITest.java是一个接口，Test.java 是接口的实现，通过注解@AutoService将接口和实现绑定到了一起，ServiceLoader调用的时候可以获取到接口实现的实例，那么它是怎么做到的呢，我们下面继续看ServiceLoader源码。

ServiceLoader

首先ServiceLoader来自于java.util.*，那么它是jdk里面自带的类。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
public final class ServiceLoader<S>
    implements Iterable<S>
{

    private static final String PREFIX = "META-INF/services/";

    public static <S> ServiceLoader<S> load(Class<S> service,
                                            ClassLoader loader)
    {
        return new ServiceLoader<>(service, loader); //实例化一个ServiceLoader
    }

    public void reload() {
        providers.clear(); //缓存作用
        lookupIterator = new LazyIterator(service, loader);
    }

    private ServiceLoader(Class<S> svc, ClassLoader cl) {
        service = Objects.requireNonNull(svc, "Service interface cannot be null");
        loader = (cl == null) ? ClassLoader.getSystemClassLoader() : cl;
        reload();
    }

     private class LazyIterator
        implements Iterator<S>
    {
        private boolean hasNextService() {
            if (nextName != null) {
                return true;
            }
            if (configs == null) {
                try {
                  // META-INF/services/com.leo.events.cardcontrol.ITest
                    String fullName = PREFIX + service.getName();
                    if (loader == null)
                        configs = ClassLoader.getSystemResources(fullName);
                    else
                        configs = loader.getResources(fullName);
                } catch (IOException x) {
                    fail(service, "Error locating configuration files", x);
                }
            }
            while ((pending == null) || !pending.hasNext()) {
                if (!configs.hasMoreElements()) {
                    return false;
                }
                pending = parse(service, configs.nextElement());
            }
            nextName = pending.next();
            return true;
        }

        private S nextService() {
        if (!hasNextService())
            throw new NoSuchElementException();
        String cn = nextName;
        nextName = null;
        Class<?> c = null;
        try {
            c = Class.forName(cn, false, loader); // 获取class
        } catch (ClassNotFoundException x) {

        }
        if (!service.isAssignableFrom(c)) {

            ClassCastException cce = new ClassCastException(
                    service.getCanonicalName() + " is not assignable from " + c.getCanonicalName());
        }
        try {
            S p = service.cast(c.newInstance()); //实例化
            providers.put(cn, p);
            return p;
        } catch (Throwable x) {
            fail(service,
                    "Provider " + cn + " could not be instantiated",
                    x);
        }
        throw new Error();          // This cannot happen
        }
    }

    private Iterator<String> parse(Class<?> service, URL u)
        throws ServiceConfigurationError
    {
        InputStream in = null;
        BufferedReader r = null;
        ArrayList<String> names = new ArrayList<>();
        try {
            in = u.openStream();
            r = new BufferedReader(new InputStreamReader(in, "utf-8"));
            int lc = 1;
            while ((lc = parseLine(service, u, r, lc, names)) >= 0);
        } catch (IOException x) {
            fail(service, "Error reading configuration file", x);
        } finally {
            try {
                if (r != null) r.close();
                if (in != null) in.close();
            } catch (IOException y) {
                fail(service, "Error closing configuration file", y);
            }
        }
        return names.iterator();
    }


}

从调用链来看，首先是load方法，进行了初始化ServiceLoader，初始化一个LazyIterator迭代器，紧接着遍历迭代器，获取到接口实例，然后调用接口方法；获取Test实例的方式是通过读取META-INF/services/com.leo.events.cardcontrol.ITest文件，然后解析文件，在通过反射初始化

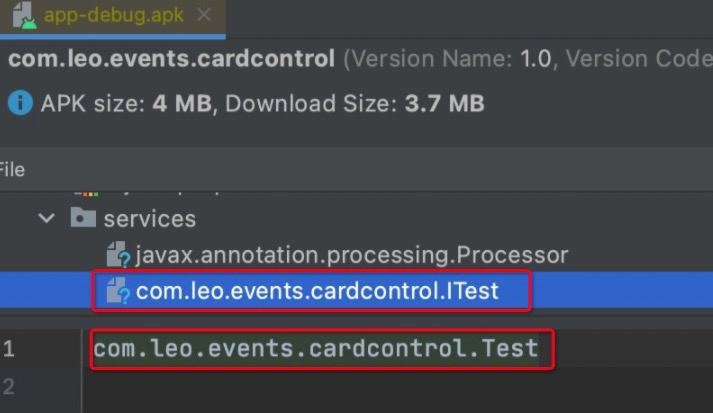

从图片中我们应该可以很清晰的看到，ServiceLoader的原理就是通过接口名称，在META-INF/services/目录下找到对应的文件，然后文件中的内容就是接口的实现类名称

紧接着我们来看META-INF/services 路径下的文件是怎么生成的，我们从构建编译来开始讲

AutoService

JavaPreCompileTask

1
2
3
4
5
6
7
8
9
10
11
12
13
|------------------------------------------------------------------------
 | javaPreCompileDebug , poseidon|
 |------------------------------------------------------------------------
 | com.android.build.gradle.tasks.JavaPreCompileTask_Decorated
 |------------------------------------------------------------------------
        | inputs file|
        |-----------------------------------------------------------------
        | 没有inputs路径
        |-----------------------------------------------------------------
        | outputs file|
        |-----------------------------------------------------------------
        | /Users/juneleo/demo/CardControl/poseidon/build/intermediates/annotation_processor_list/debug/annotationProcessors.json
        |-----------------------------------------------------------------

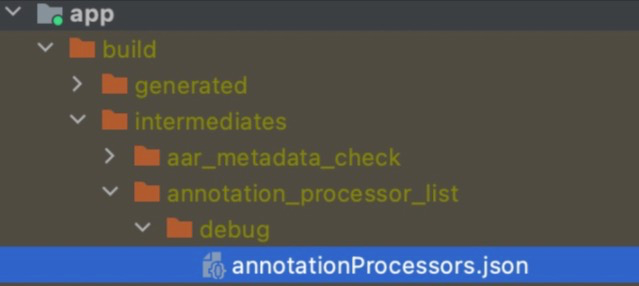

在compileDebugJavaWithJavac之前执行javaPreCompileDebug，这个任务会输出annotationProcessors.json

1
2
3
4
5
6
{
  "bundle_apt-1.1.3.jar (com.autonavi.scm:bundle_apt:1.1.3)": false,
  "aui-annotation-0.0.7.jar (com.autonavi.aui-annotation:aui-annotation:0.0.7)": false,
  "hostkeep.jar (project :hostkeep)": false,
  "auto-service-1.0-rc7.jar (com.google.auto.service:auto-service:1.0-rc7)": true
}

在这个json中指定了使用annotationProcessor依赖的项目

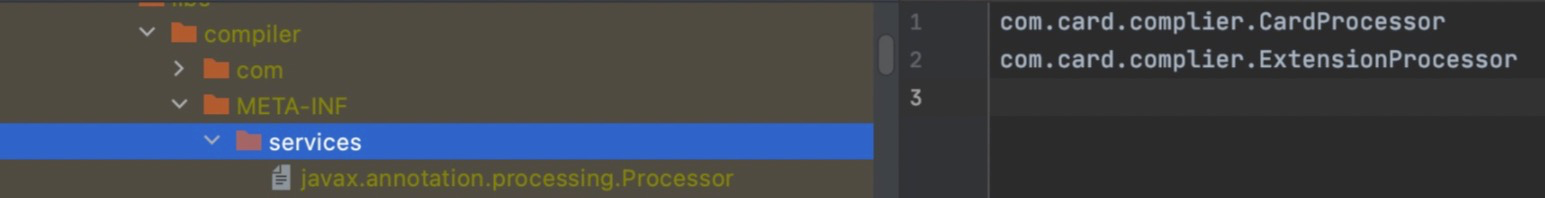

我们在编译apt项目时，在生成的apt jar包中我们可以看到如下

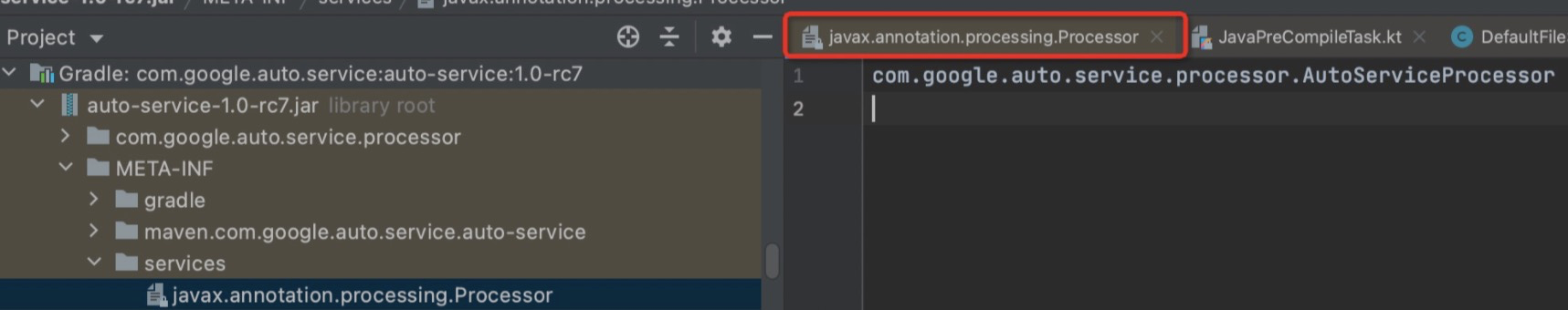

或者在autoservice jar包中也可以看到如下

而下方代码对META-INF/services/下方的文件进行了解析并进行了输出

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
abstract class JavaPreCompileWorkAction : ProfileAwareWorkAction<JavaPreCompileParameters>() {

    override fun run() {
        //获取 META-INF/services/javax.annotation.processing.Processor 的依赖
        val annotationProcessors =
            detectAnnotationProcessors(
                parameters.annotationProcessorClassNames.get(),
                parameters.annotationProcessorArtifacts.get()
            )
        //输出到CardControl/app/build/intermediates/annotation_processor_list/debug/annotationProcessors.json
        writeAnnotationProcessorsToJsonFile(
            annotationProcessors, parameters.annotationProcessorListFile.get().asFile
        )
    }
}


const val ANNOTATION_PROCESSORS_INDICATOR_FILE =
    "META-INF/services/javax.annotation.processing.Processor"
const val INCREMENTAL_ANNOTATION_PROCESSORS_INDICATOR_FILE =
    "META-INF/gradle/incremental.annotation.processors"

fun detectAnnotationProcessors(
    artifacts: Collection<SerializableArtifact>
): Map<SerializableArtifact, Boolean> {
    // TODO We assume that an artifact has an annotation processor if it contains
    // ANNOTATION_PROCESSORS_INDICATOR_FILE, and the processor is incremental if it contains
    // INCREMENTAL_ANNOTATION_PROCESSORS_INDICATOR_FILE. We need to revisit this assumption as the
    // processors may register as incremental dynamically.
    val processors = mutableMapOf<SerializableArtifact, Boolean>()

    for (artifact in artifacts) {
        val artifactFile = artifact.file
        // 文件夹
        if (artifactFile.isDirectory) {
            if (File(artifactFile, ANNOTATION_PROCESSORS_INDICATOR_FILE).exists()) {
                processors[artifact] =
                        File(artifactFile, INCREMENTAL_ANNOTATION_PROCESSORS_INDICATOR_FILE)
                            .exists()
            }

        } else if (artifactFile.isFile) { //文件 一般都是jar包
            try {
                JarFile(artifactFile).use { jarFile ->
                    //如果包含 META-INF/services/javax.annotation.processing.Processor
                    if (jarFile.getJarEntry(ANNOTATION_PROCESSORS_INDICATOR_FILE) != null) {
                        processors[artifact] = jarFile.getJarEntry(
                            INCREMENTAL_ANNOTATION_PROCESSORS_INDICATOR_FILE
                        ) != null
                    }
                }
            } catch (e: IOException) {
                // Can happen when we encounter a folder instead of a jar; for instance, in
                // sub-modules. We're just displaying a warning, so there's no need to stop the
                // build here. See http://issuetracker.google.com/64283041.
            }
        }
    }

    return processors
}

JavaCompile

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
|------------------------------------------------------------------------
 | compileDebugJavaWithJavac , app|
 |------------------------------------------------------------------------
 | org.gradle.api.tasks.compile.JavaCompile_Decorated
 |------------------------------------------------------------------------
        | inputs file|
        |-----------------------------------------------------------------
        | /Users/juneleo/demo/CardControl/app/build/intermediates/annotation_processor_list/debug/annotationProcessors.json
        | //省略jar包和java文件
        |-----------------------------------------------------------------
        | outputs file|
        |-----------------------------------------------------------------
        | /Users/juneleo/demo/CardControl/app/build/generated/ap_generated_sources/debug/out
        | /Users/juneleo/demo/CardControl/app/build/intermediates/javac/debug/classes
        |-----------------------------------------------------------------

从图中我们可以看到JavaPreCompileTask的输出作为了JavaCompile的输入

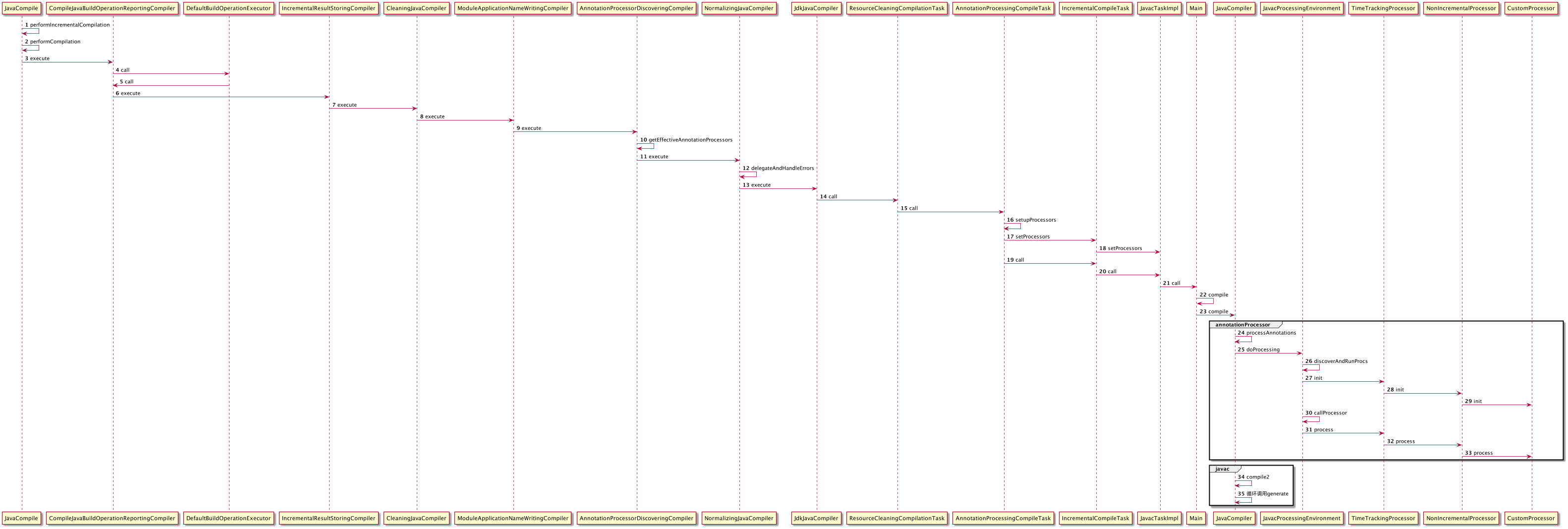

调用链请下载查看

JavaCompile调用jdk入口

1
2
3
4
5
6
7
8
9
10
11
12
13
public Result doCall() {
        if (!this.used.getAndSet(true)) {
            this.initContext();
            this.notYetEntered = new HashMap();
            this.compilerMain.setAPIMode(true);
            //最后一个参数为annotationProcessor相关
            this.result = this.compilerMain.compile(this.args, this.classNames, this.context, this.fileObjects, this.processors);
            this.cleanup();
            return this.result;
        } else {
            throw new IllegalStateException("multiple calls to method 'call'");
        }
    }

args参数

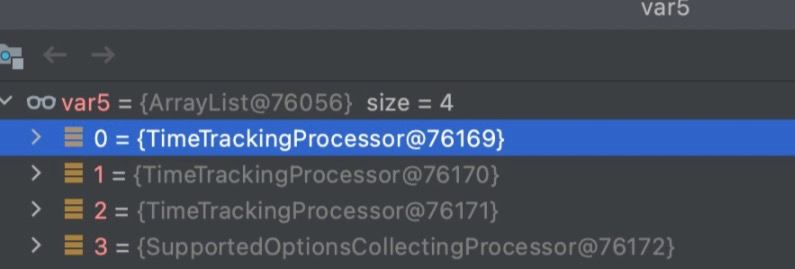

processor参数

总结

  • AutoService注解只是为了让编译器能找到Processor类
  • JavaCompiler（可以认为是javac）compile之前会进行会进行processAnnotations生成类
  • JavaCompiler 并没有调用javac，而是调用内部方法循环调用generate生成每一个class
  • JavaCompile是任务compileDebugJavaWithJavac，JavaCompiler是jdk中的class生成器
